Daikin Airbase BRP15B61

Description

Table of Contents

1. Daikin Airbase BRP15B61 – Key Benefits
2. Compatibility
3. Installation
4. Airbase Features
5. Apps
6. Downloads

Daikin Airbase BRP15B61 – Key Benefits

• Turn on and set the temperature of your air conditioning before your arrival.
• Remote parental system control whilst children are home alone.
• Free iOS & Android apps are available for download.

Compatibility

The Daikin Airbase BRP15B61 controller is conveniently compatible with all new Daikin ducted air conditioning systems and those manufactured since 2010.

In addition, all Daikin ducted heat pumps manufactured after 2003 are likely to have Wi-Fi capability, with the addition of Daikin’s Airbase controller.  If you wish to check compatibility, please email us.

Note: Daikin’s remote control communications support a maximum of two controllers at any time.  Because the Daikin Airbase BRP15B61 controller interface is recognised as a controller, it cannot be installed onto an existing air conditioning system that already has two remote controllers associated with it – even if that’s one upstairs and downstairs.  In this circumstance, you must remove one of the existing controllers.

Installation

Installation is trivial for anyone with any kind of DIY experience, and complete instructions for the installation, connection and usage of the Daikin Airbase BRP15B61 are supplied with the product.

Quick summary: Switch off the power to the air conditioner at the main socket or isolator switch.  Write down the device ID number and password of your controller.  Once you’ve done this, remove the cover to the internal electrics on the fan coil.  Next, attach the Daikin Airbase BRP15B61 cables to the P1 and P2 terminals (see picture example), then replace the cover.

Position your Daikin Airbase in a place close to a nearby router for easy communication over WiFi.  Restore power to the air conditioning system and download the Daikin Airbase app on your SmartPhone or Tablet.  Using the WiFi setting, locate a network called DaikinAP _then your id number.  Connect to that WiFi network using the password you noted down previously.  Finally, launch the Daikin Airbase app and configure the system to suit your requirements.

Installation Tip: You can piggyback the BRP15B61 off your existing connection.  So if you have 2 controllers, you can reuse the same wires with the Airbase when removing the least used controller.  Similarly, you can install the Daikin Airbase close to an existing controller and use the same wired connection – just add a small extension to the Airbase.

Airbase Features

Note that not all functions may be available for your system.

FUNCTION	DUCTED WITH NAV EASE	DUCTED WITH ZONE CONTROLLER
Start/Stop Operation
Temperature Setting
Fan Speed Settings
Mode Selection (Cool/Heat/Fan/Dry)

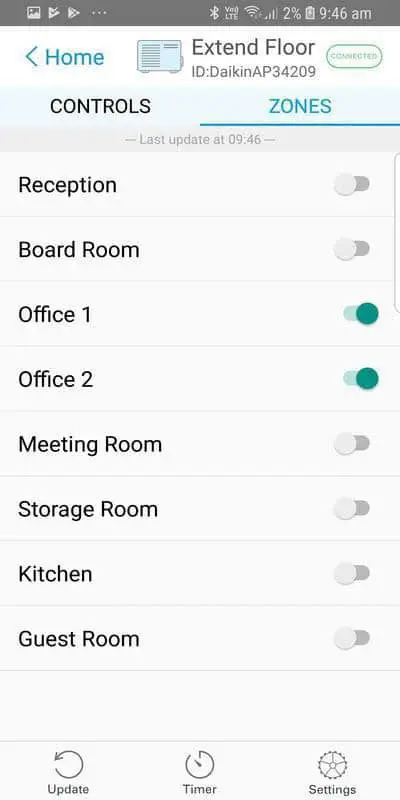

Zone On/Off	–
24-Hour On/Off Timer
Enter Zone Names	–
Error Notification
Room Temperature Display
Push Notification (On/Off Alerts)
Automatic Adaptor Firmware Update
Setup Wizard in App
Fan Speed Settings

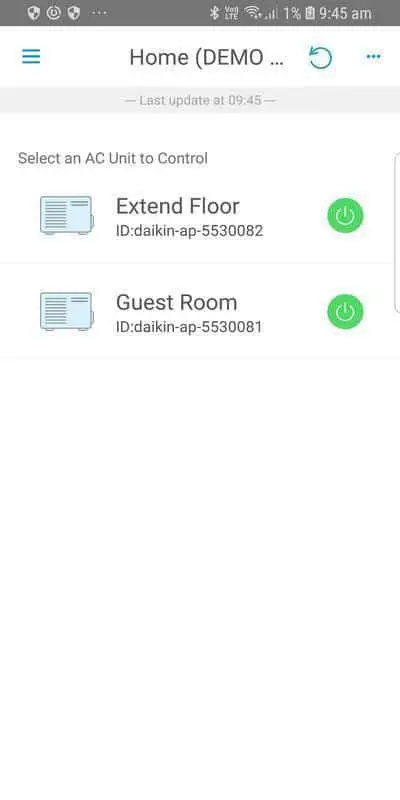

Apps
